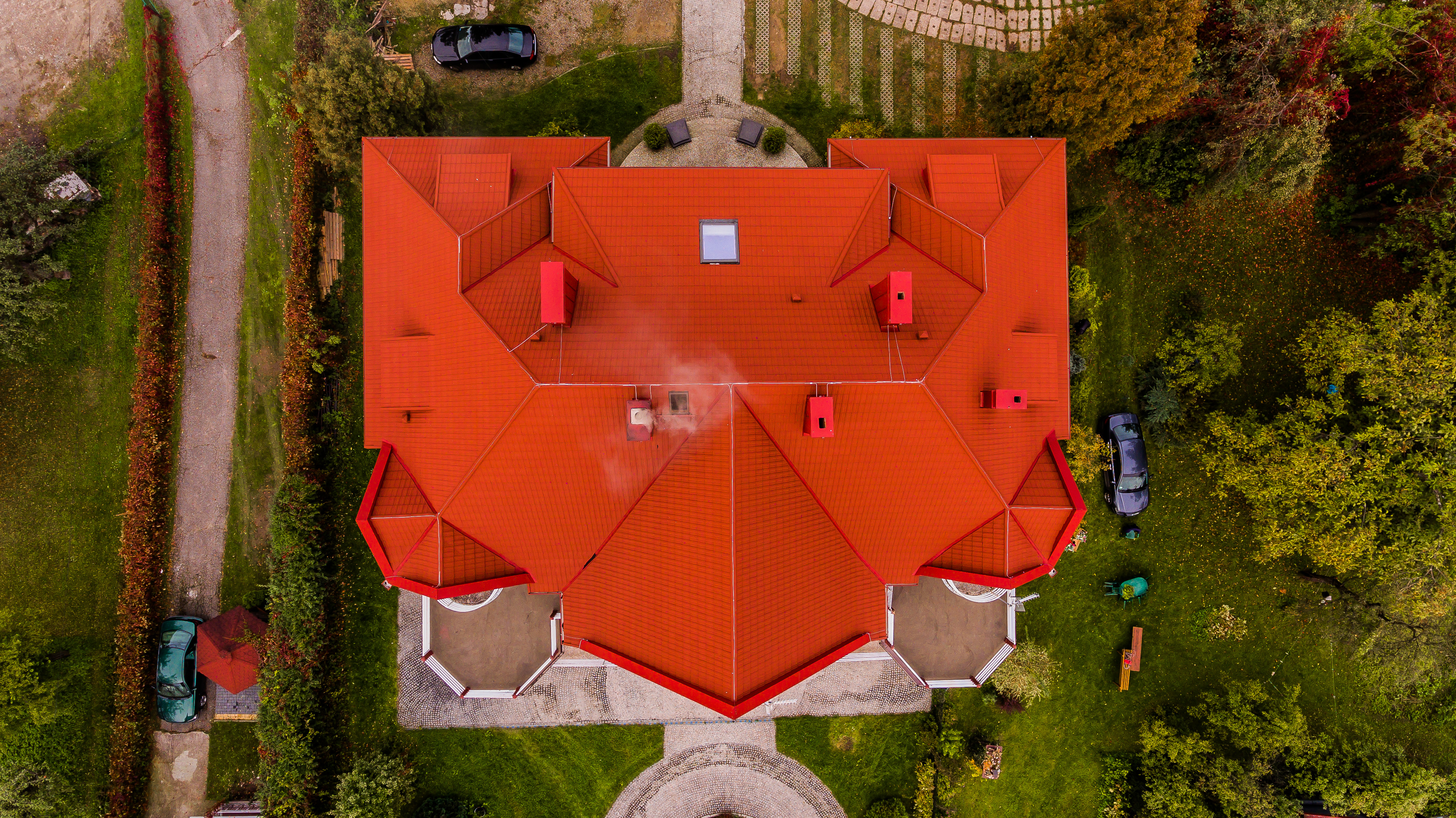

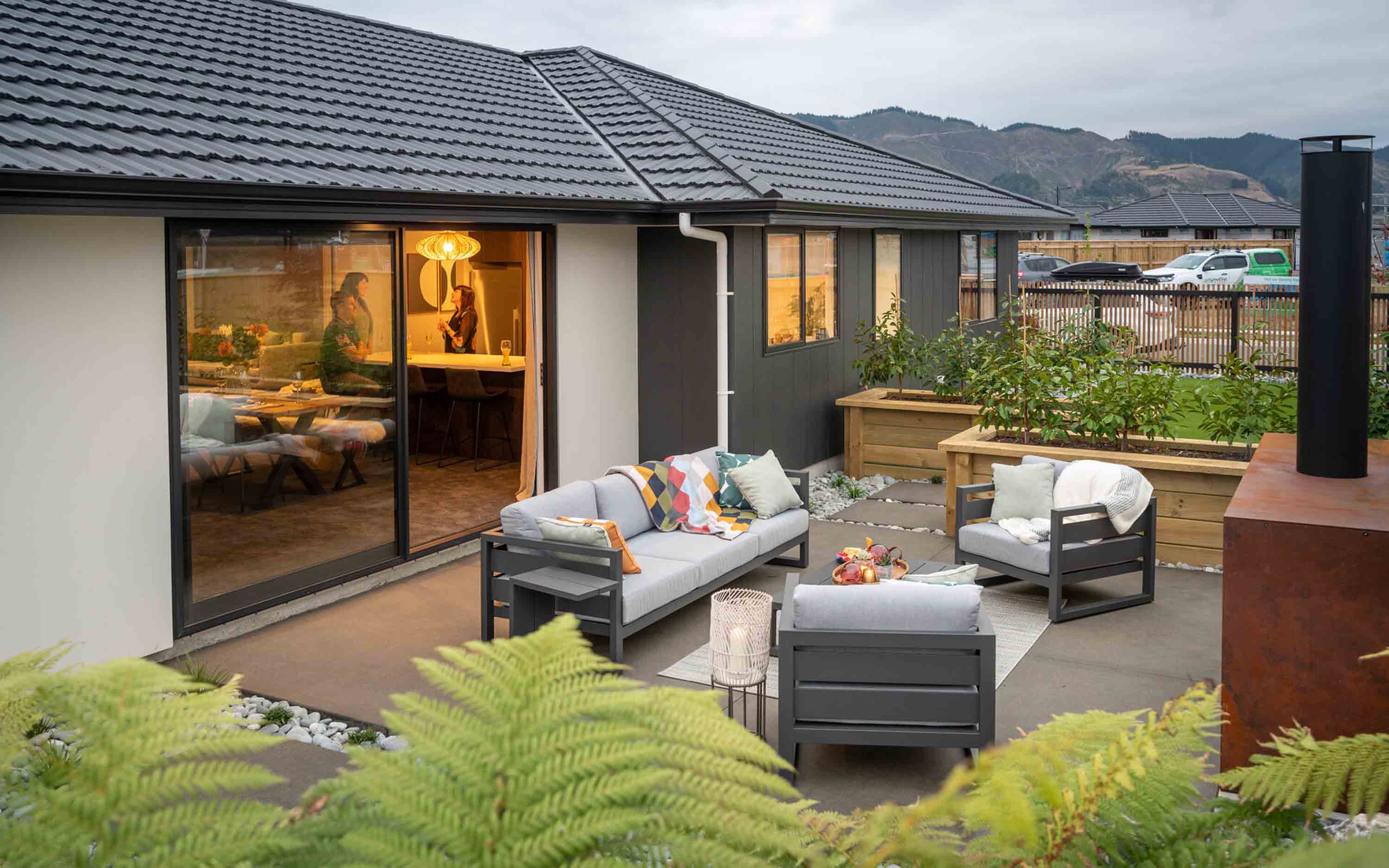

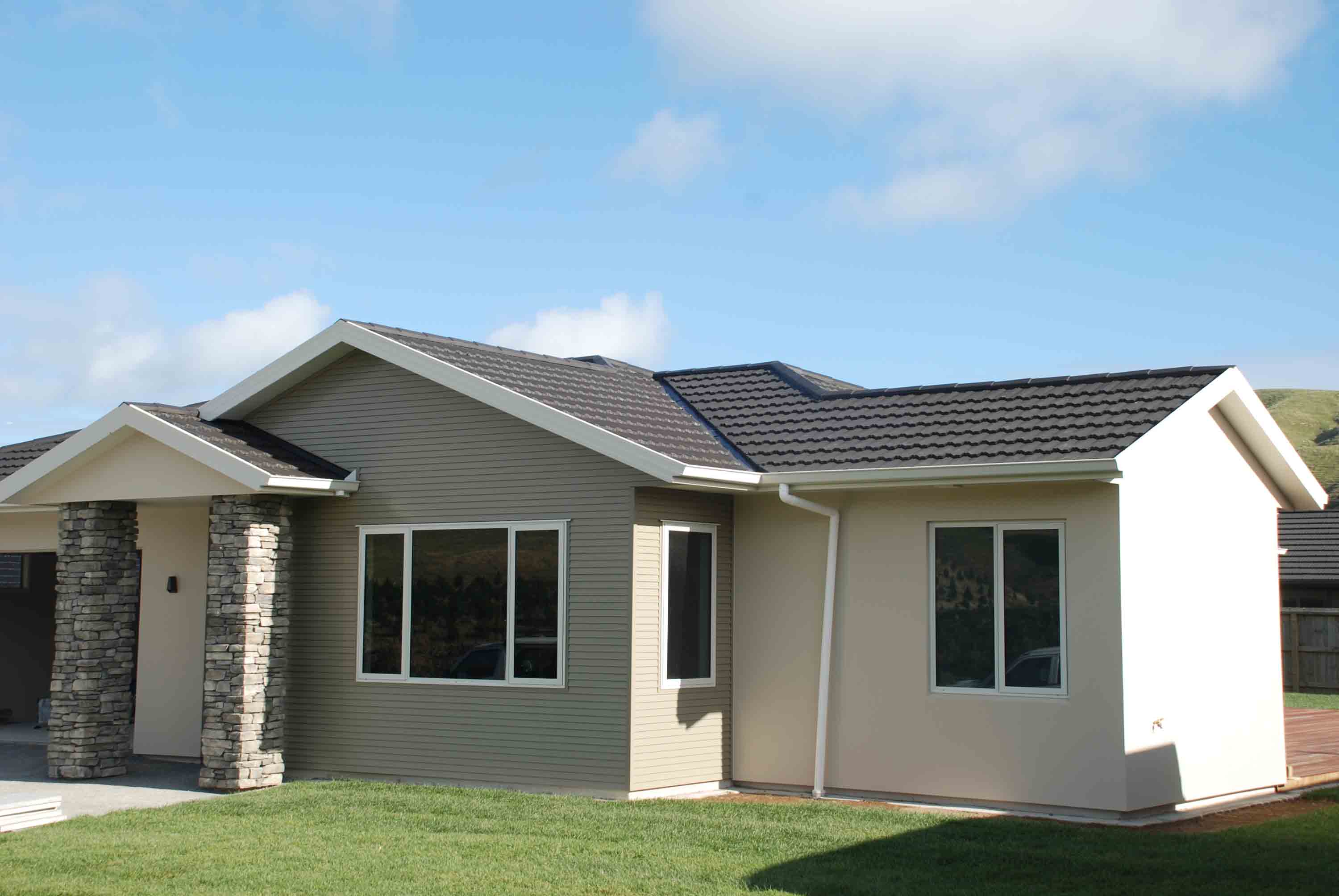

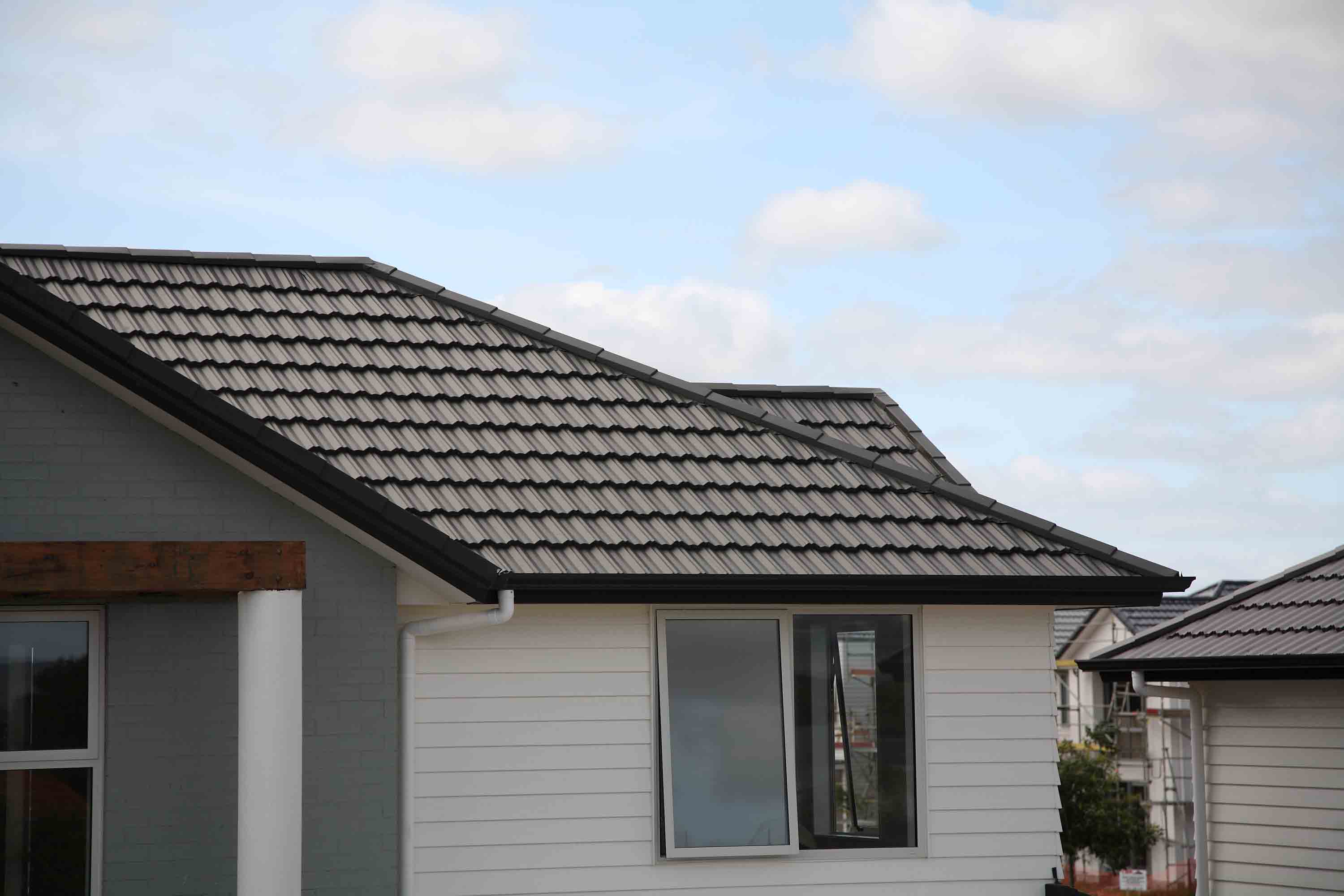

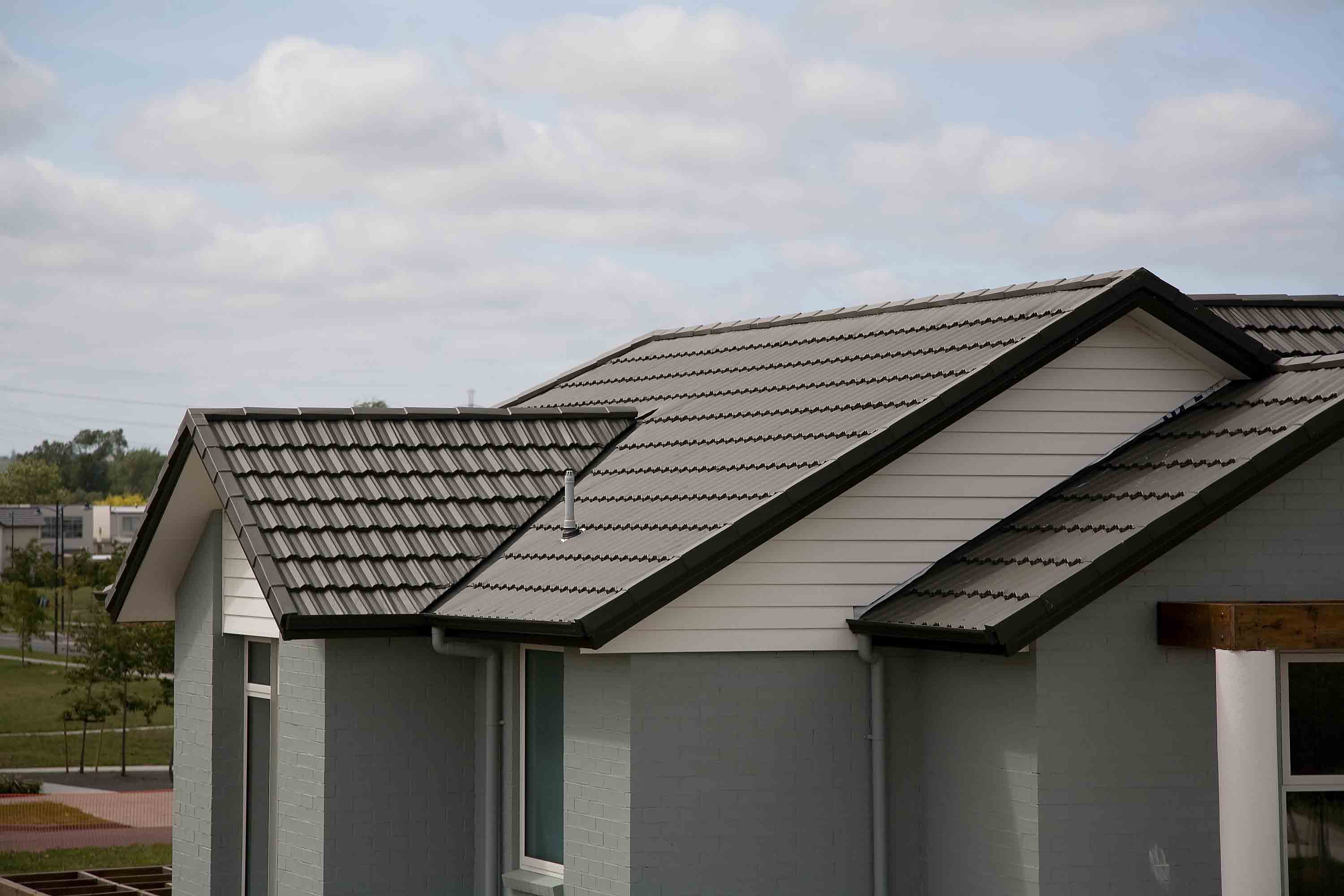

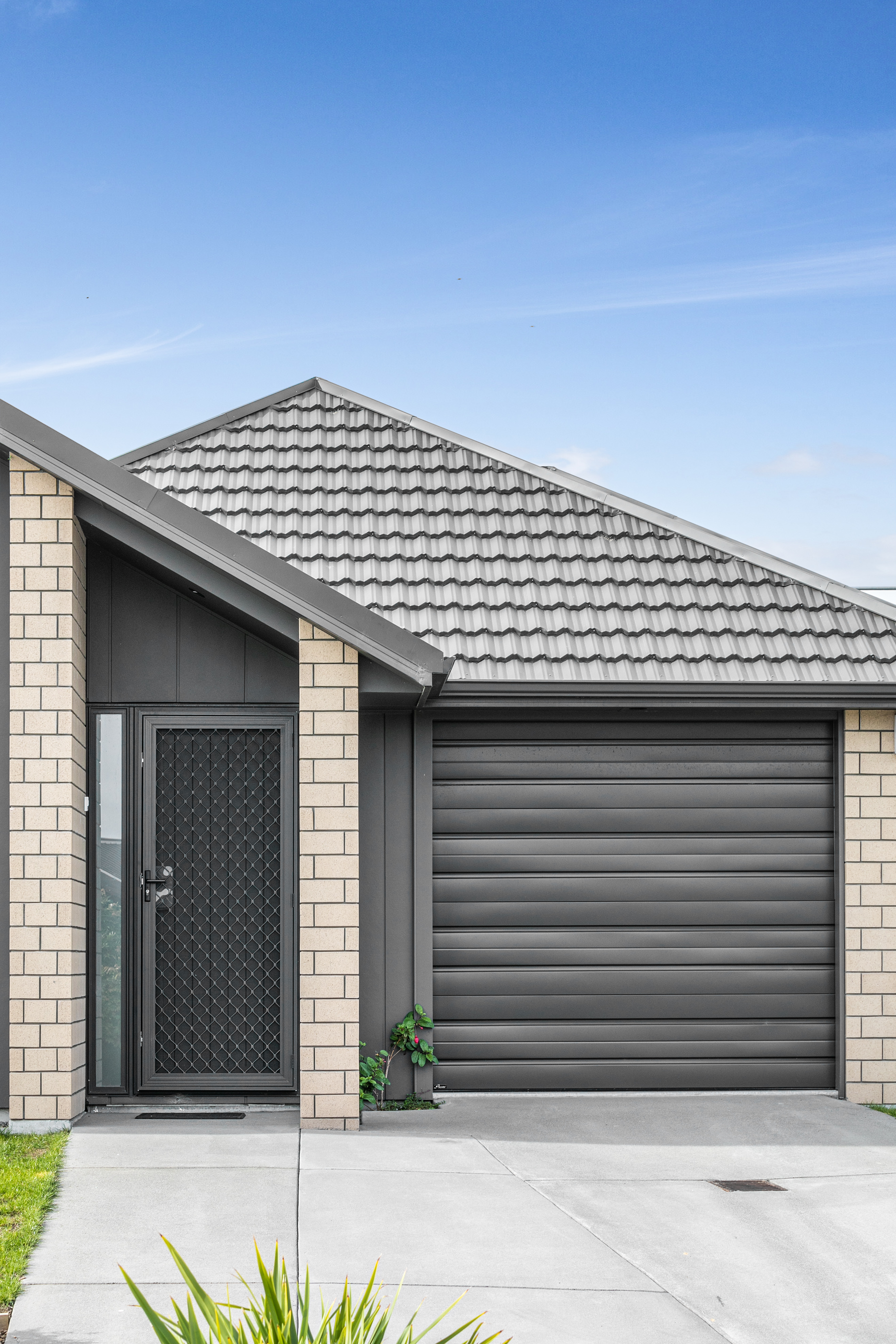

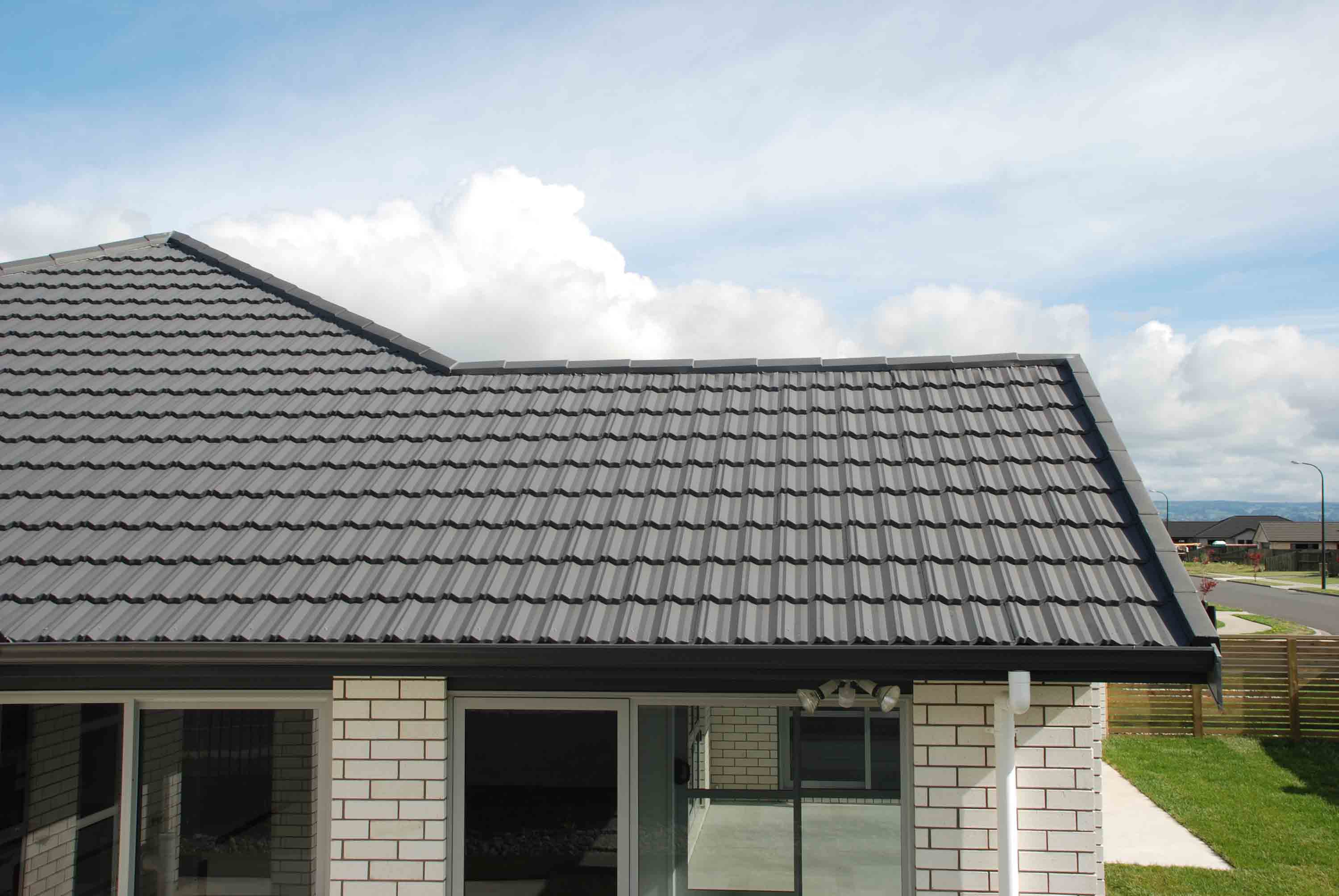

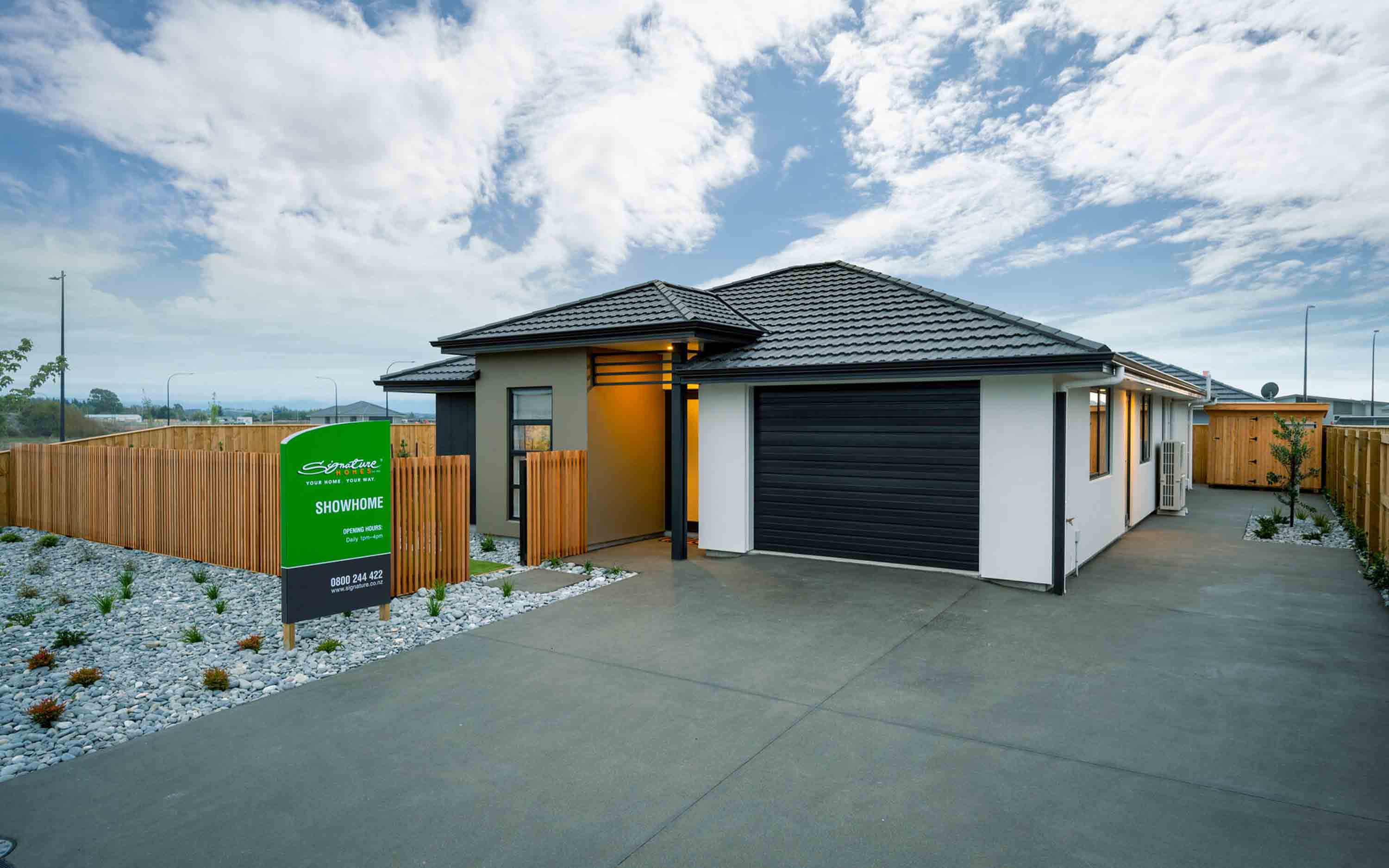

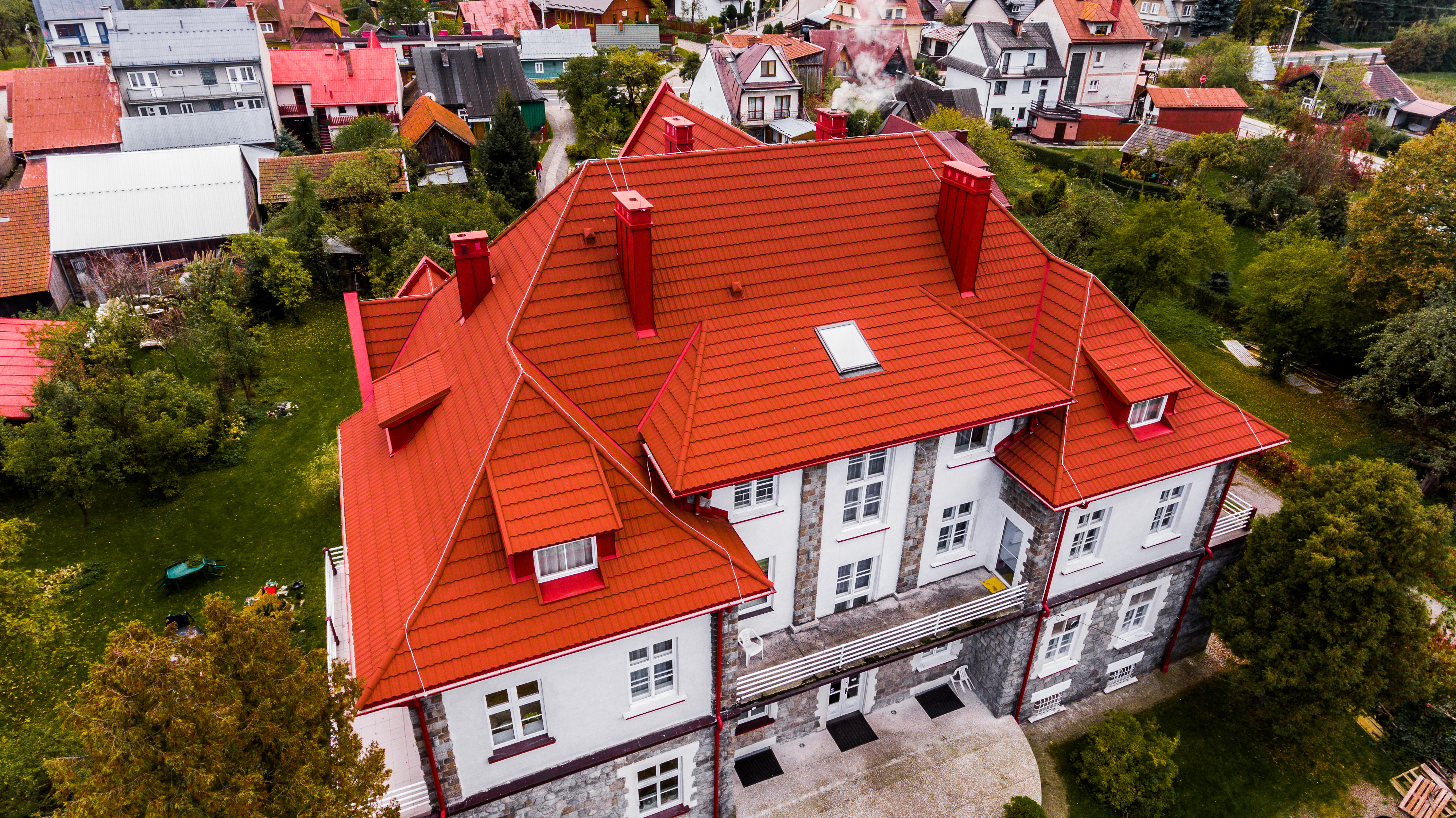

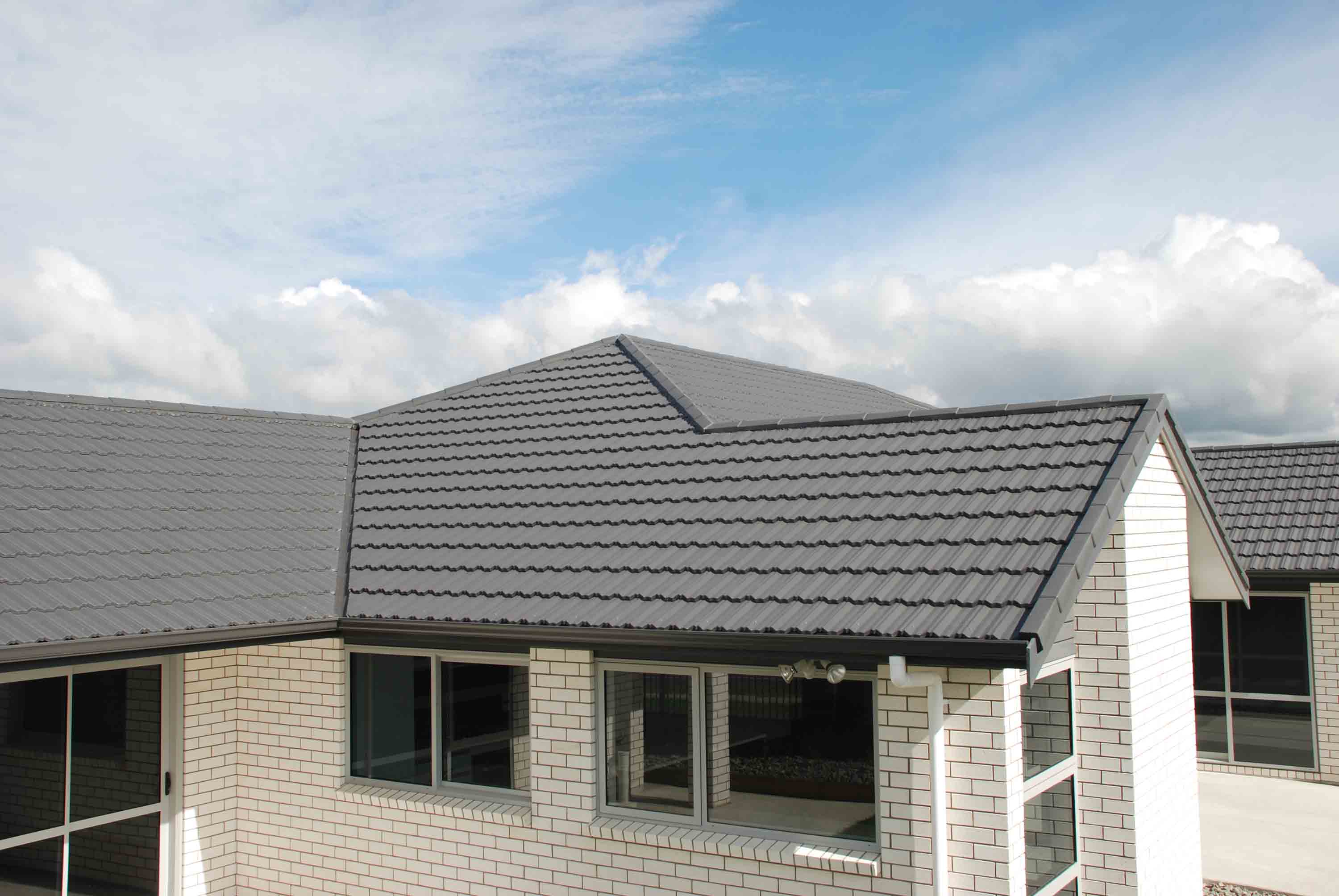

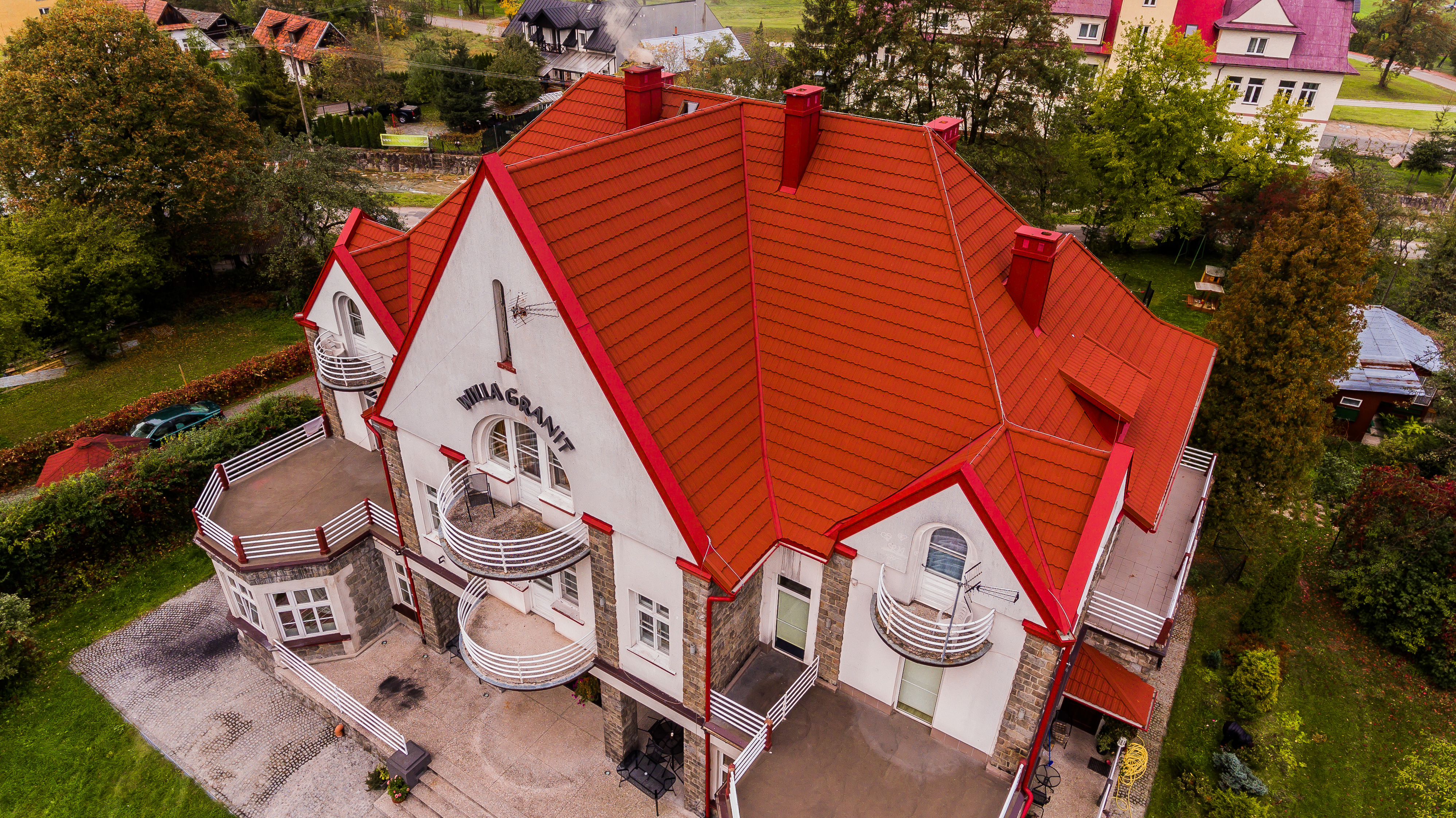

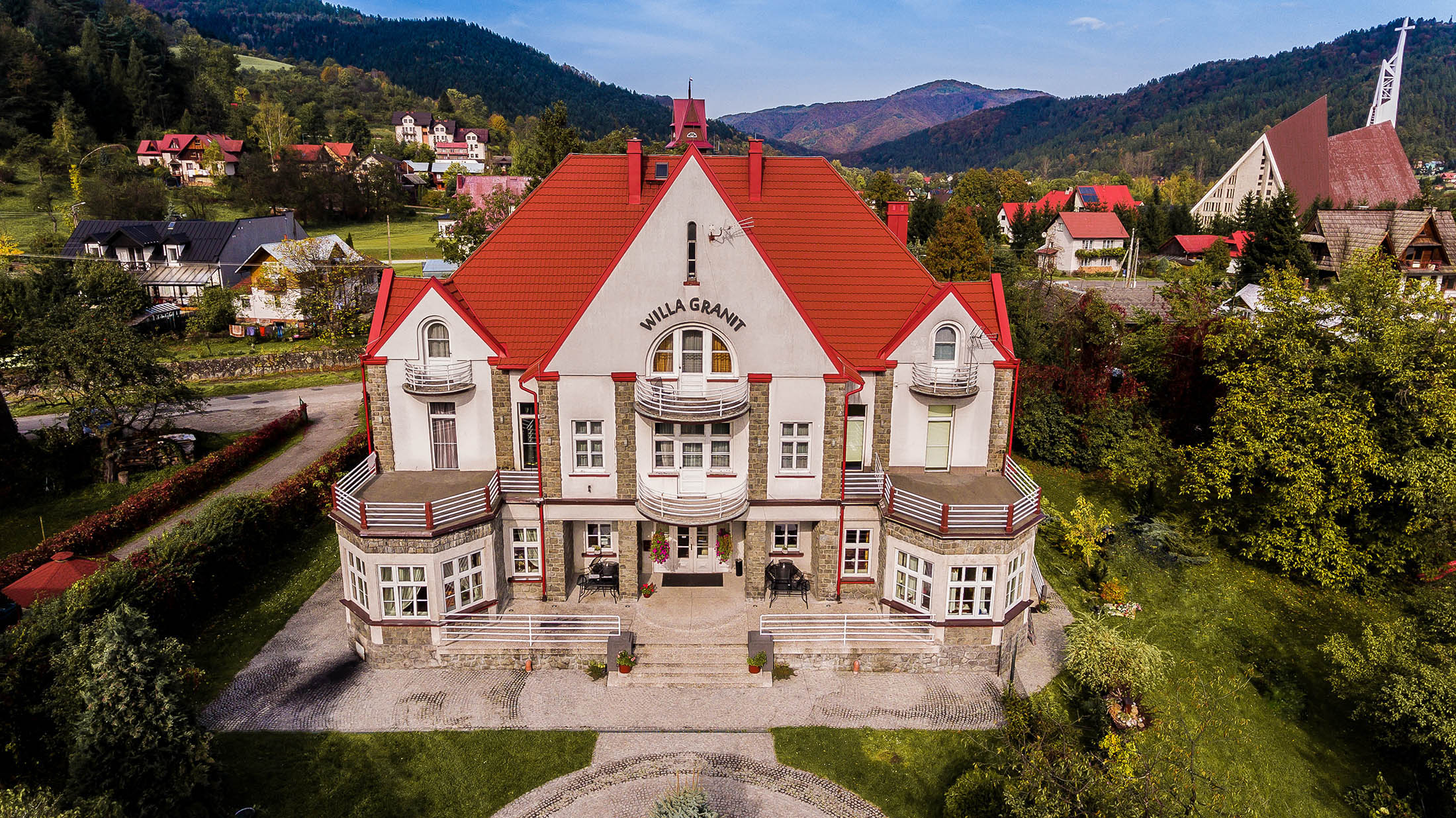

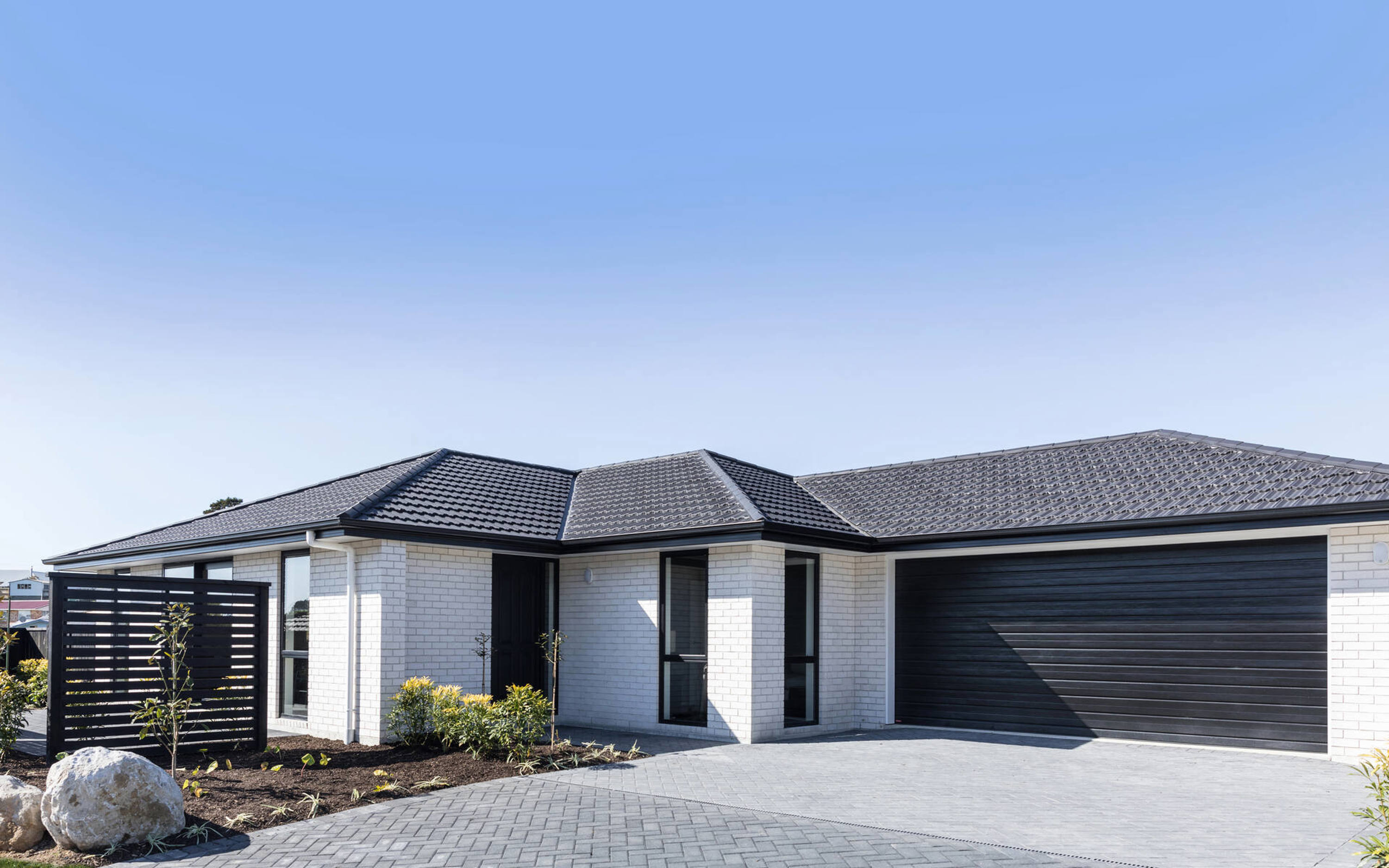

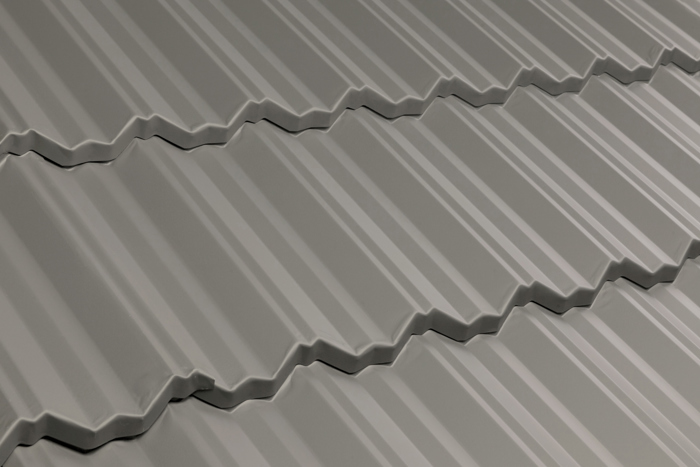

A geometric profile with strong shapes and bold angles. The Classic profile is often used for homes where the roof is an architectural feature in its own right.
Classic

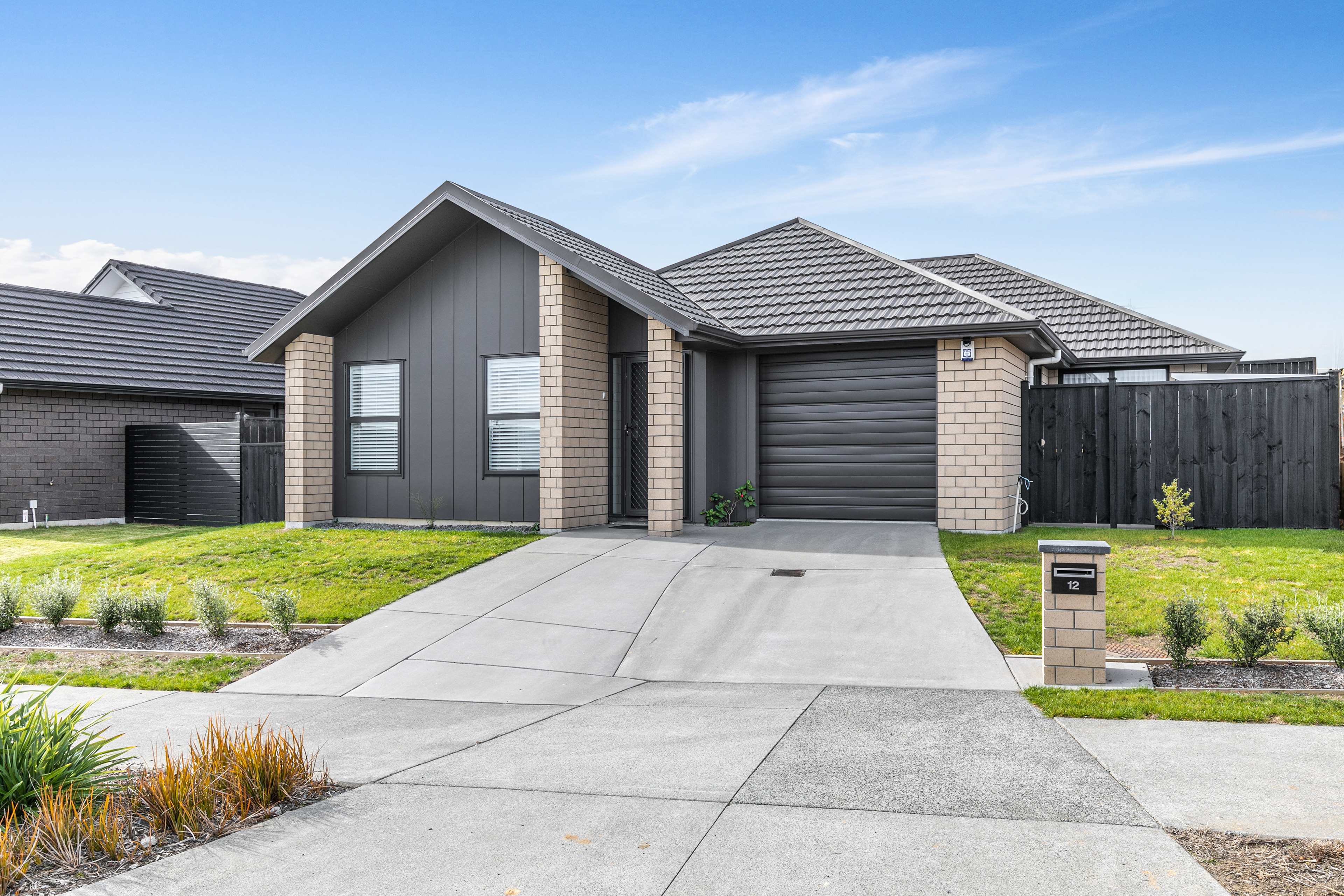

![](/media/kv3ffthn/12_walter_lawry_dr_01.jpg?anchor=center&mode=crop&width=440&height=330&rnd=133084256721030000)
![](/media/kv3ffthn/12_walter_lawry_dr_01.jpg?anchor=center&mode=crop&width=440&height=440&rnd=133084256721030000)

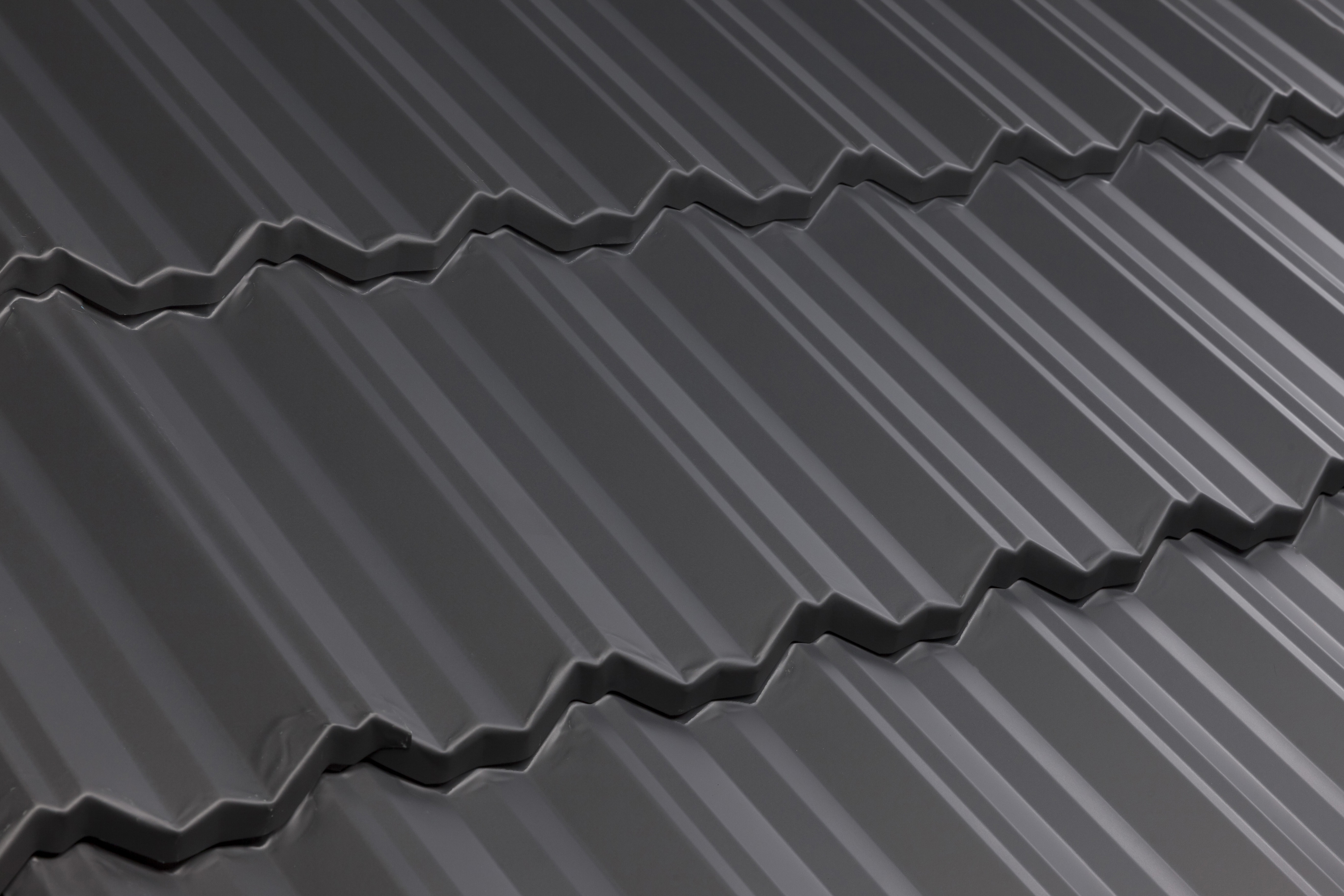

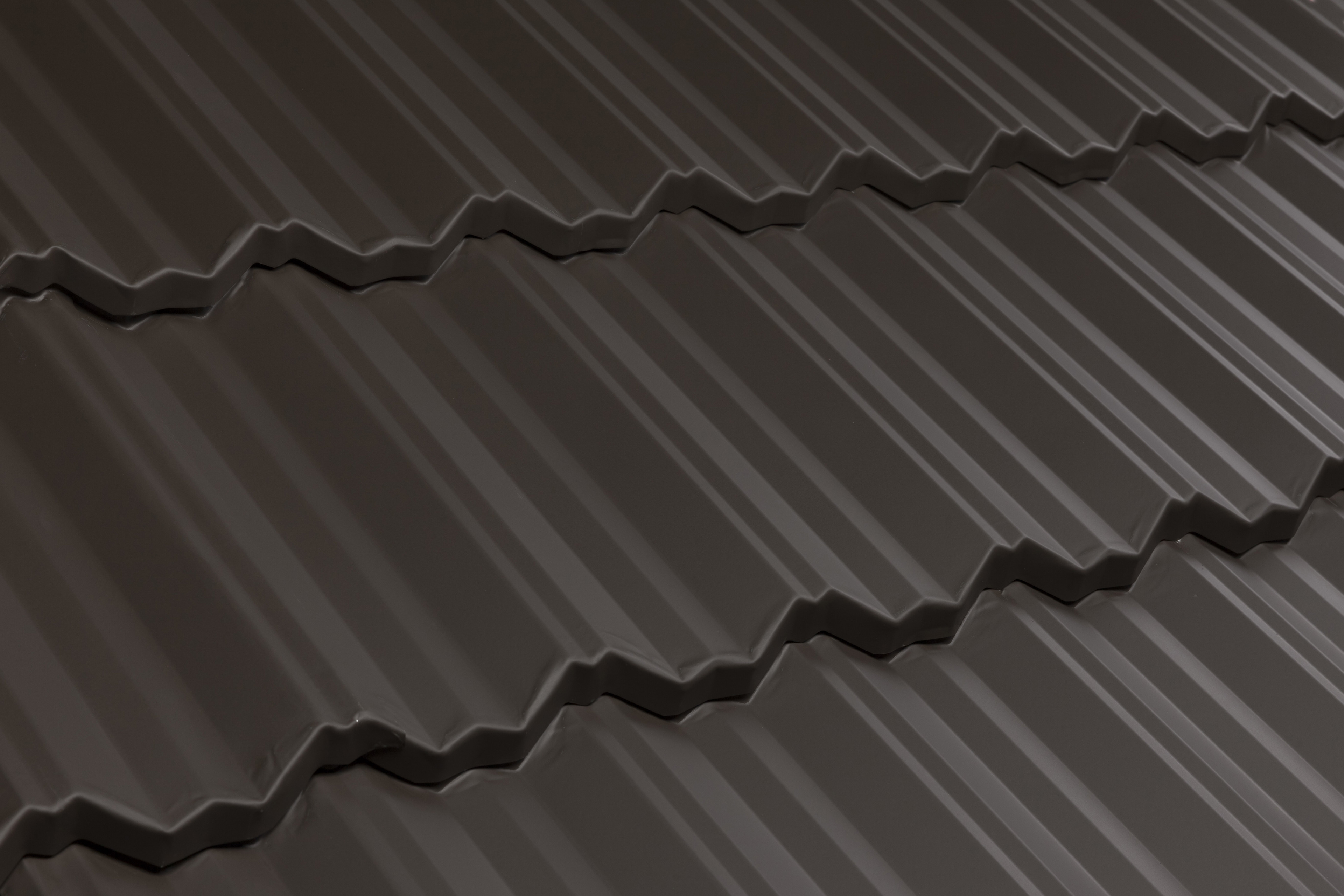

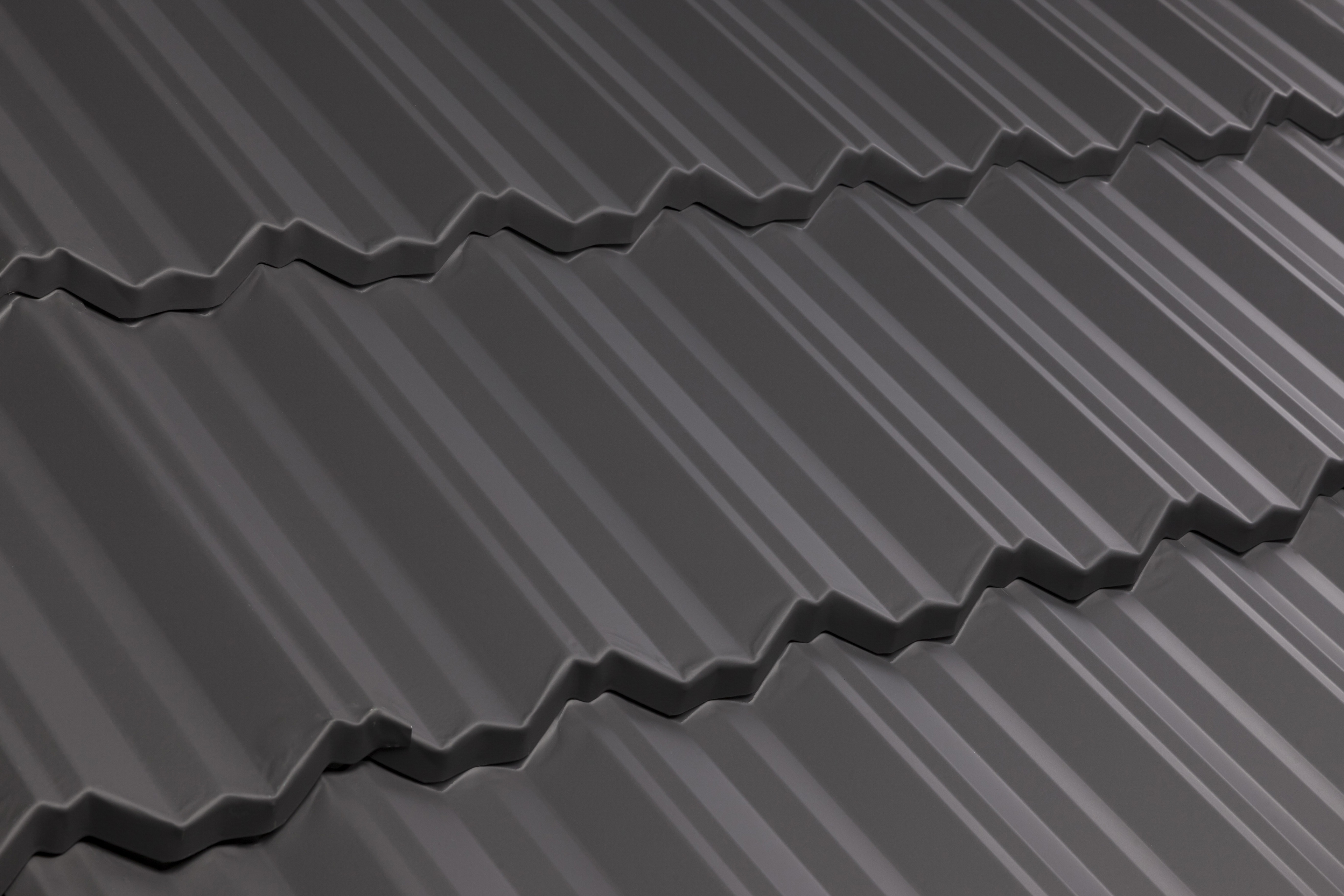

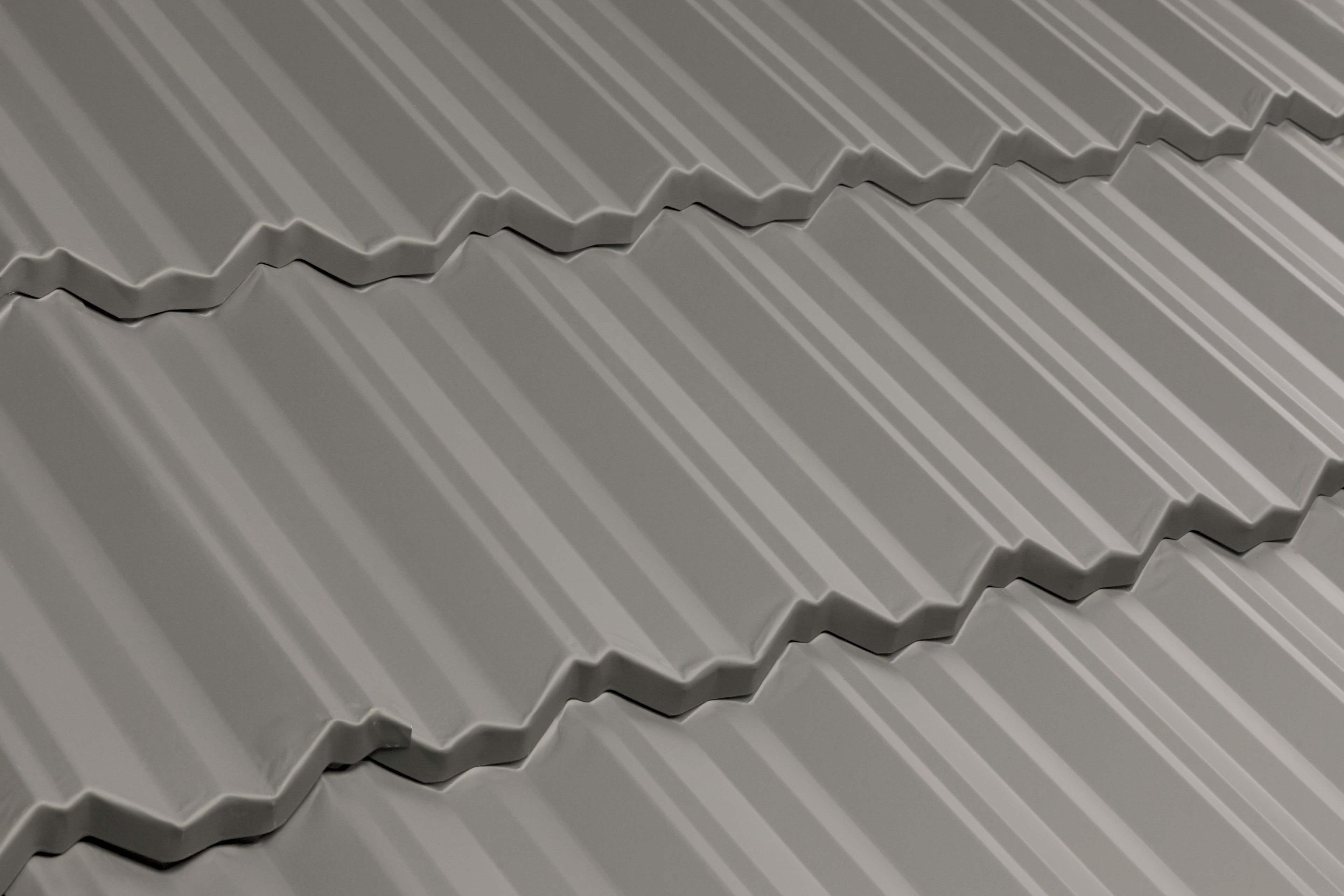

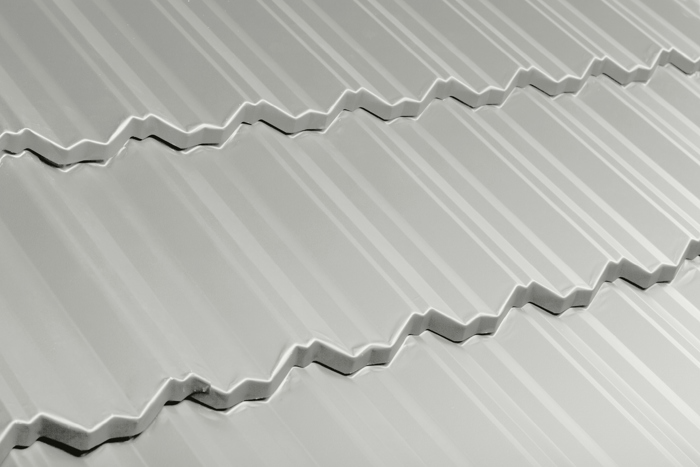

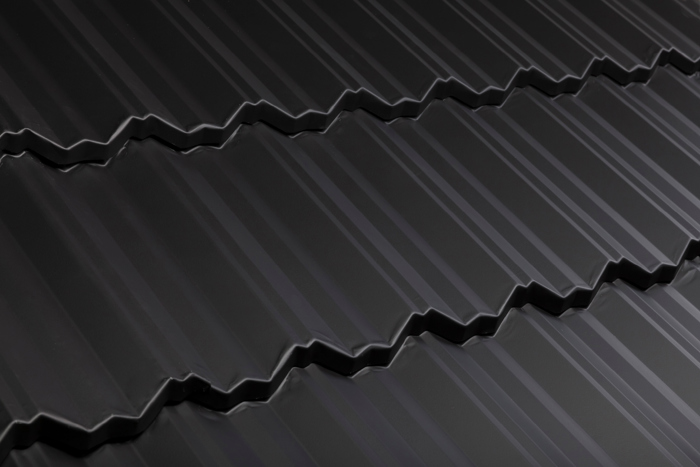

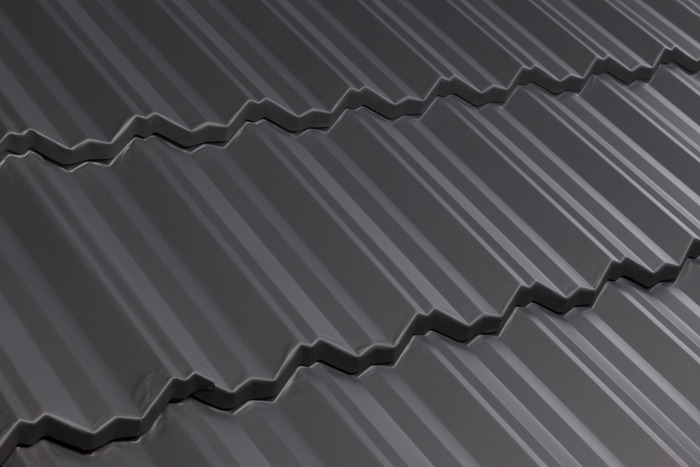

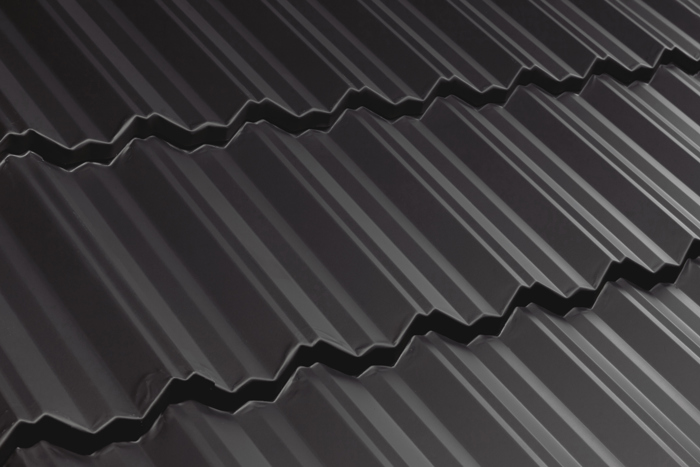

Popular Satin Colours

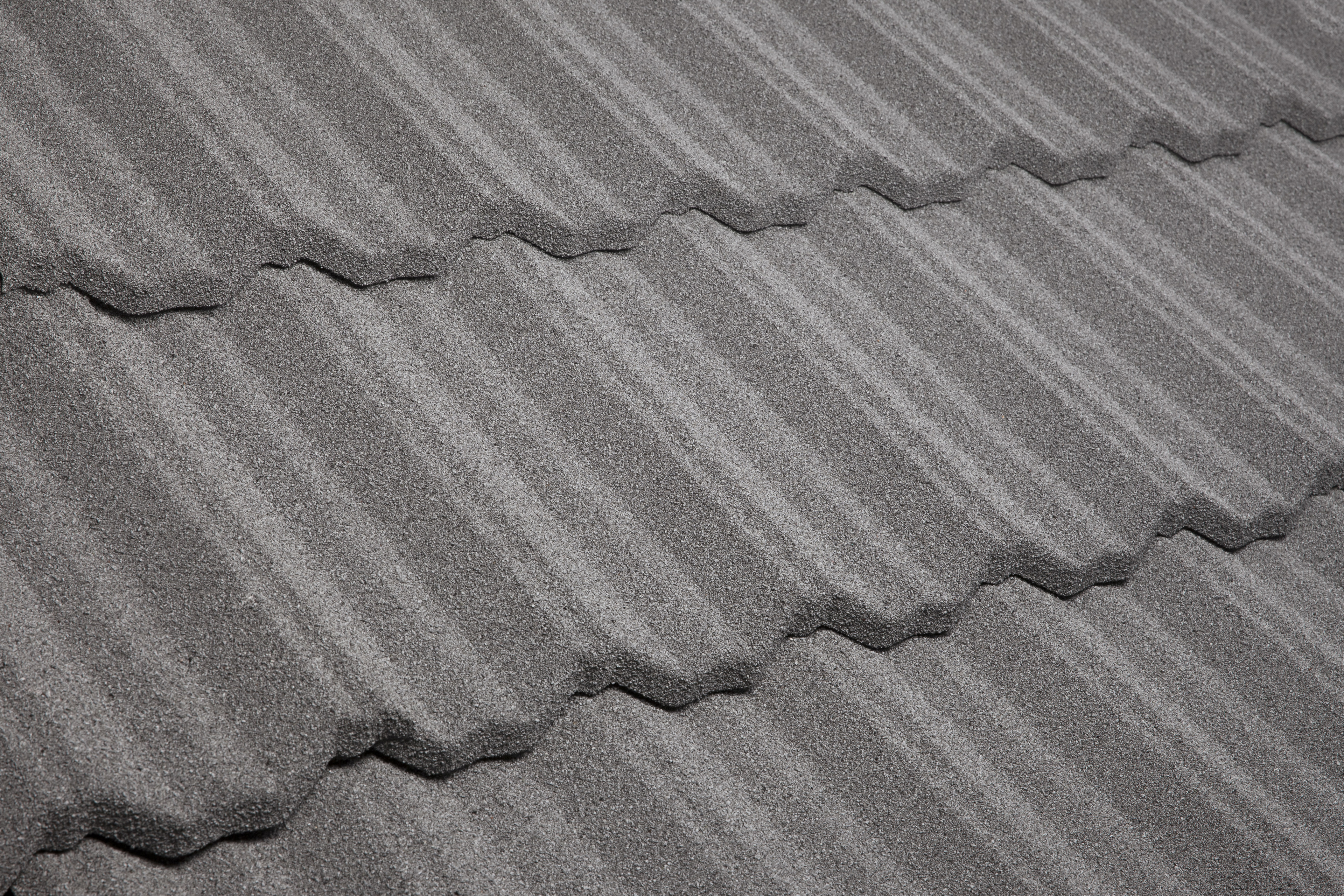

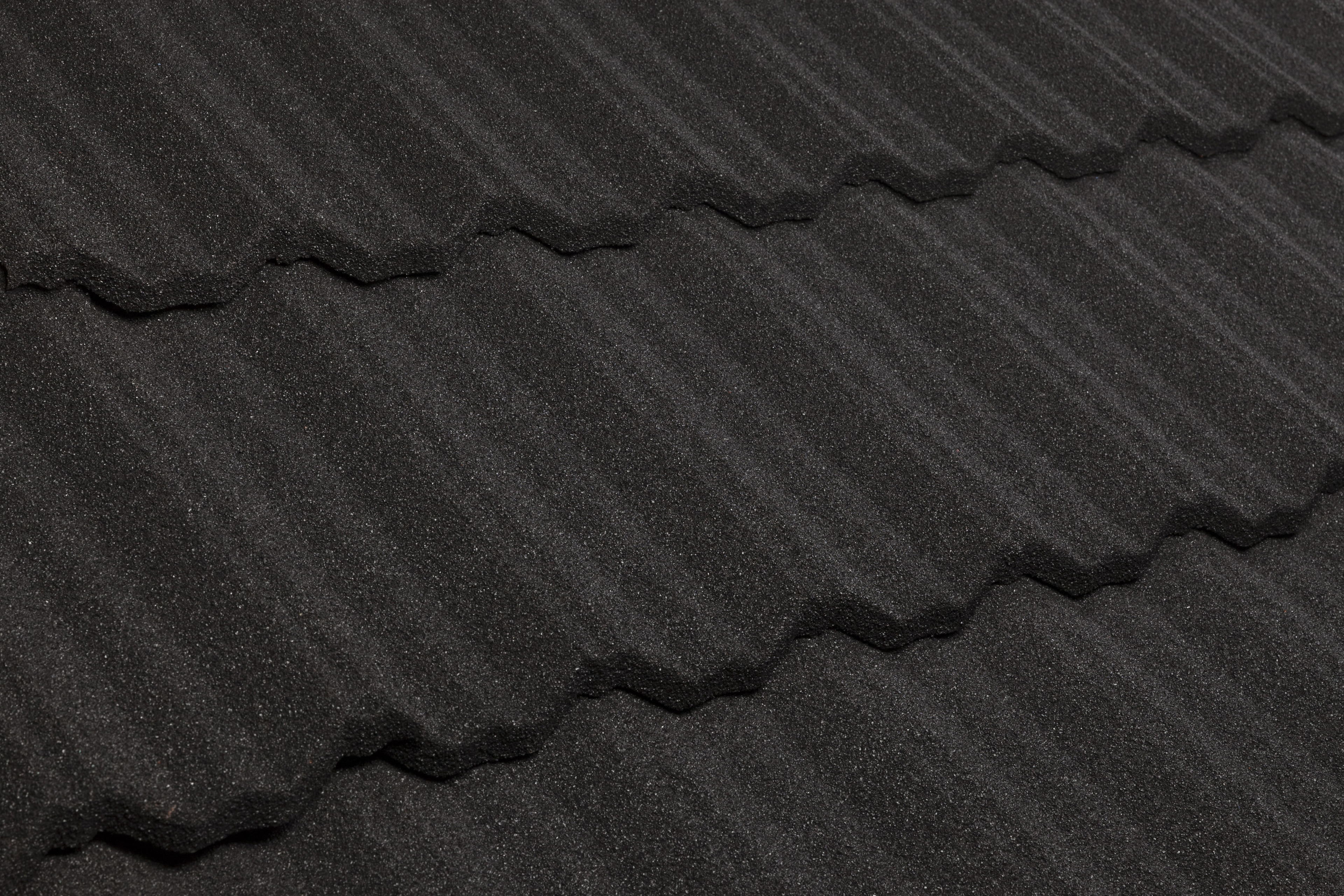

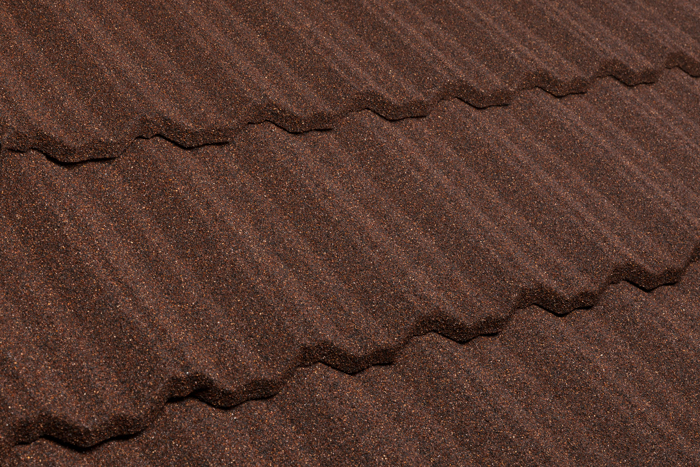

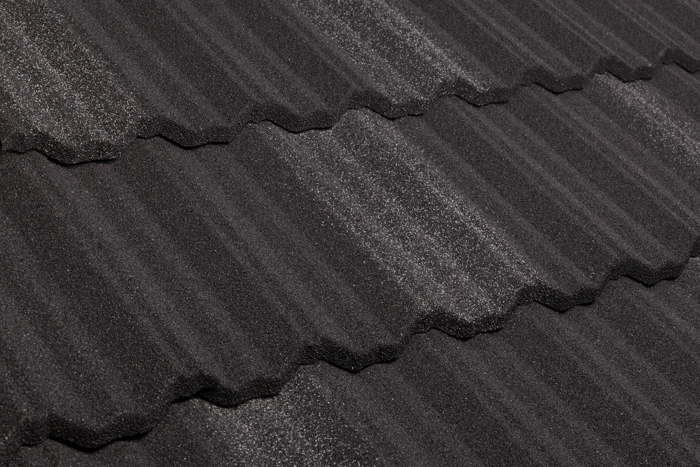

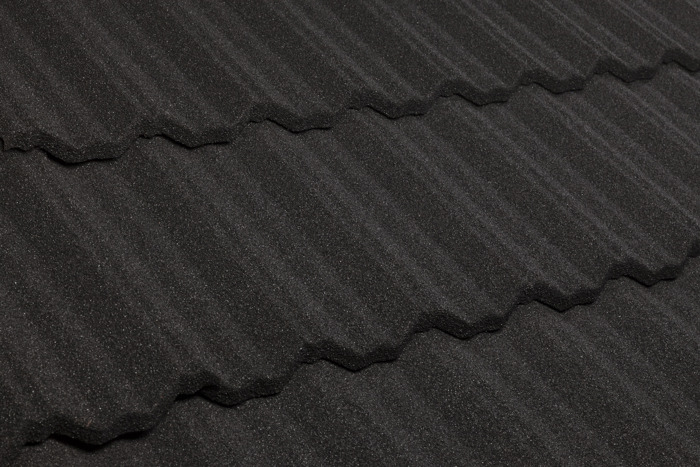

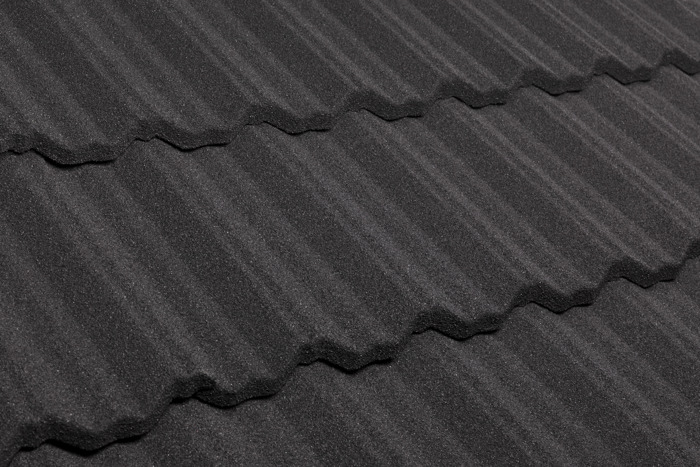

Popular Textured Colours
*Colours are as close to the actual products as possible. There may be slight variations due to screen settings.
![](/media/kv3ffthn/12_walter_lawry_dr_01.jpg?anchor=center&mode=crop&width=440&height=330&rnd=133084256721030000)
![](/media/kv3ffthn/12_walter_lawry_dr_01.jpg?anchor=center&mode=crop&width=440&height=440&rnd=133084256721030000)
![](/media/bz1ccze2/classic-tile.png)

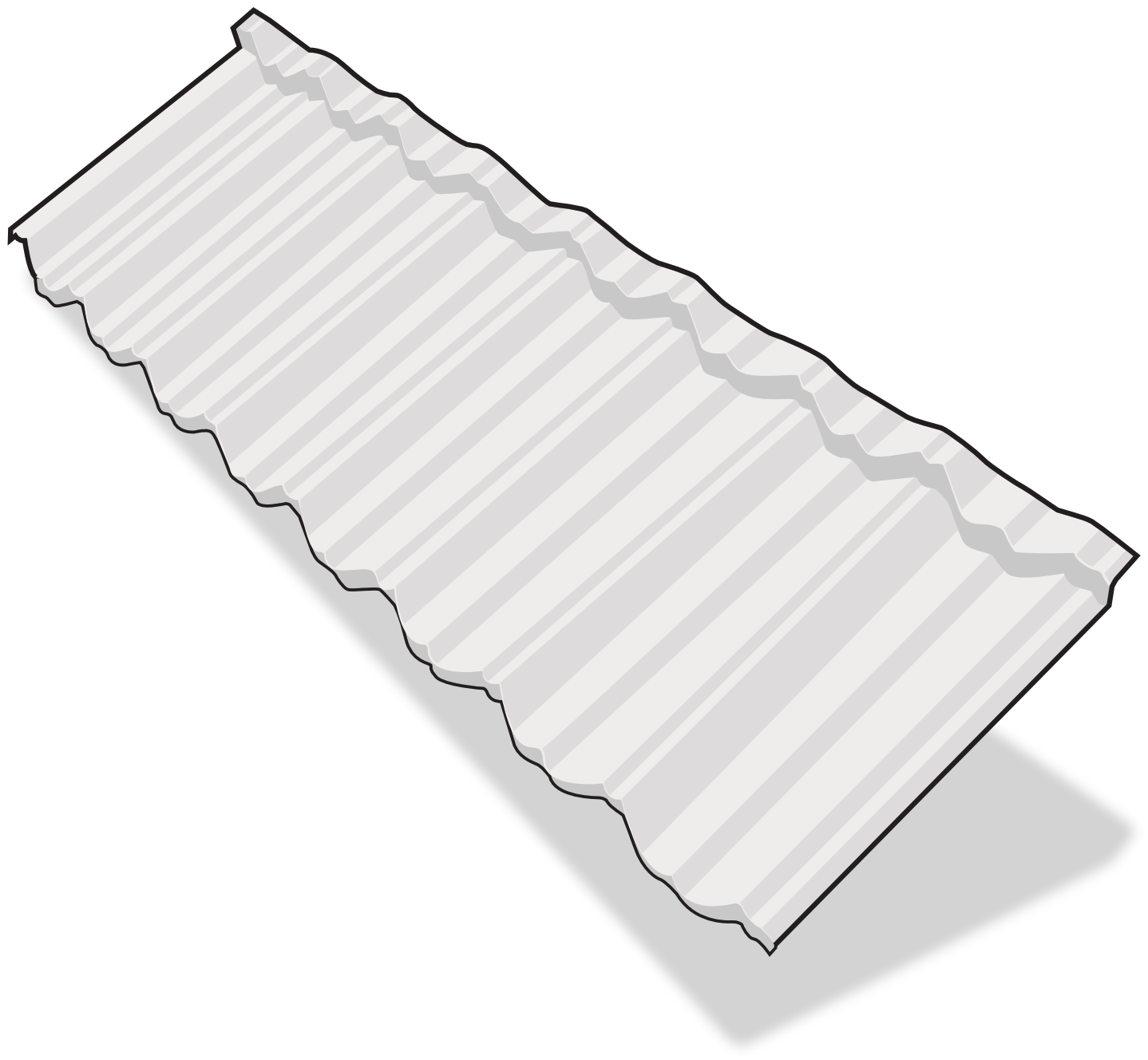

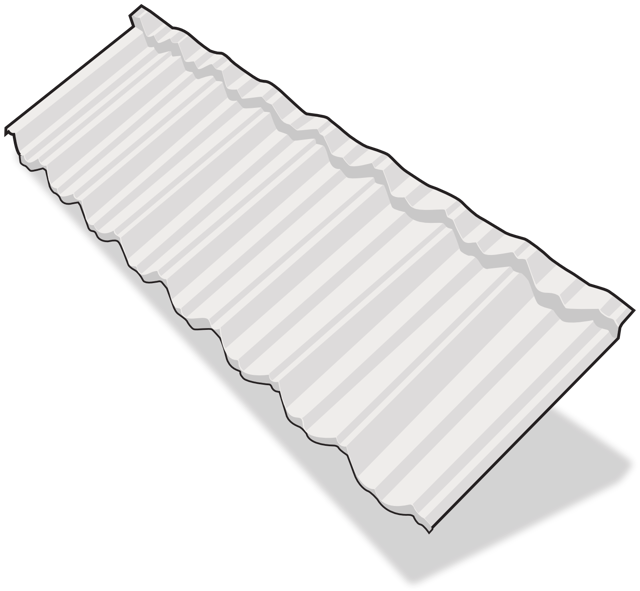

Product Specifications
- Overall Length
- 1320 mm
- Length of cover
- 1257 mm
- Width of cover
- 369 mm
- Roof cover / panel
- 0.46 m
- Panels /m2
- 2.2
- Weight / panel
- 2.9 kg Textured / 2.1 kg Satin
- Weight /m2
- 6.4 kg Textured / 4.7 kg Satin
- Minimum roof pitch
- 12 degrees

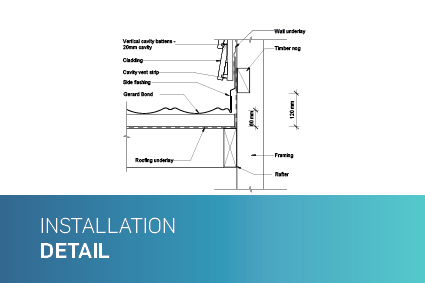

Technical documents
-
Gerard Classic Wall Traverse - Step Flashing
-

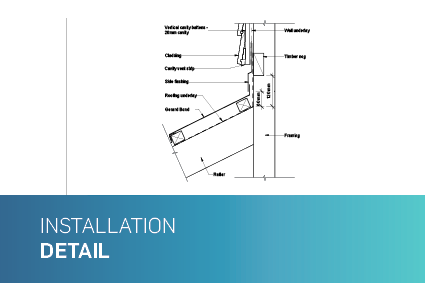

Gerard Classic Wall Traverse - Side Flashing
-
Gerard Classic Wall Transverse - EH Wind Wall Flashing
-
Gerard Classic Wall Traverse - Apron Flashing
-
Gerard Classic Wall Parallel - Stop End Wall
- View all CAD files View all documents
